Product Description

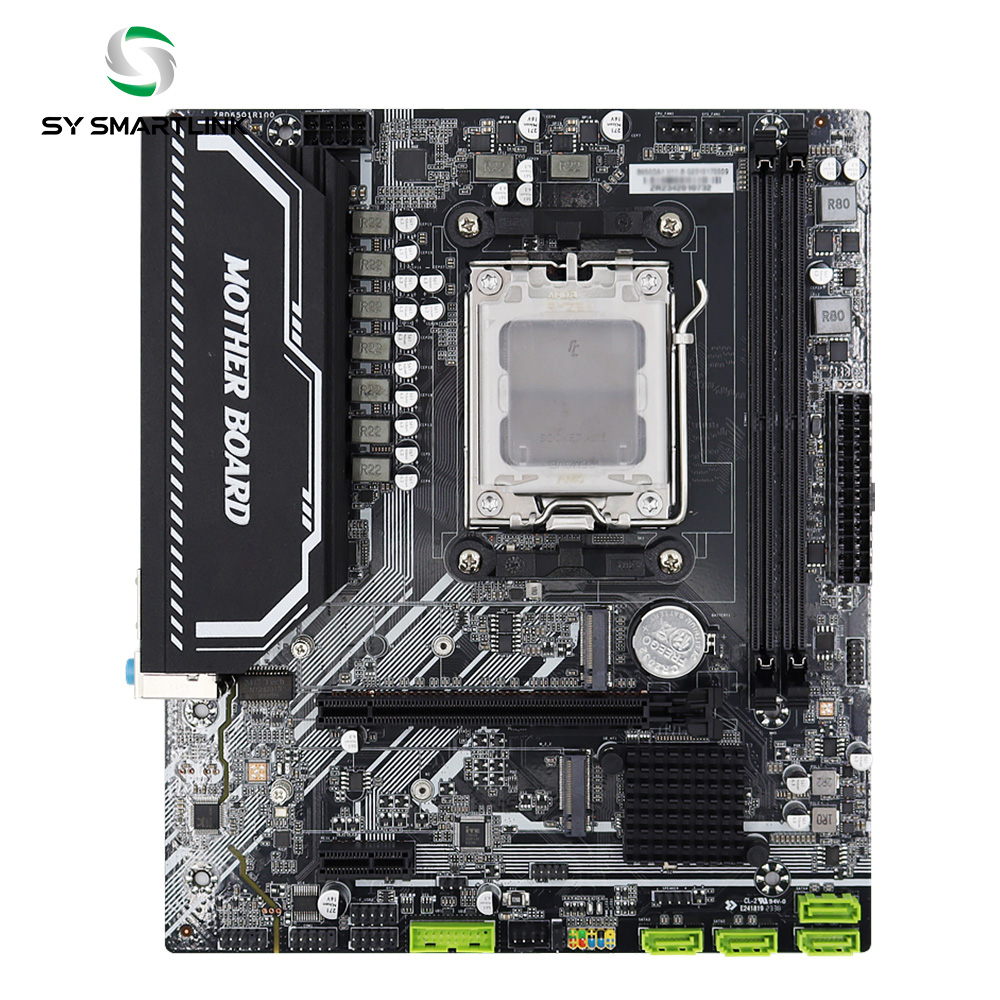

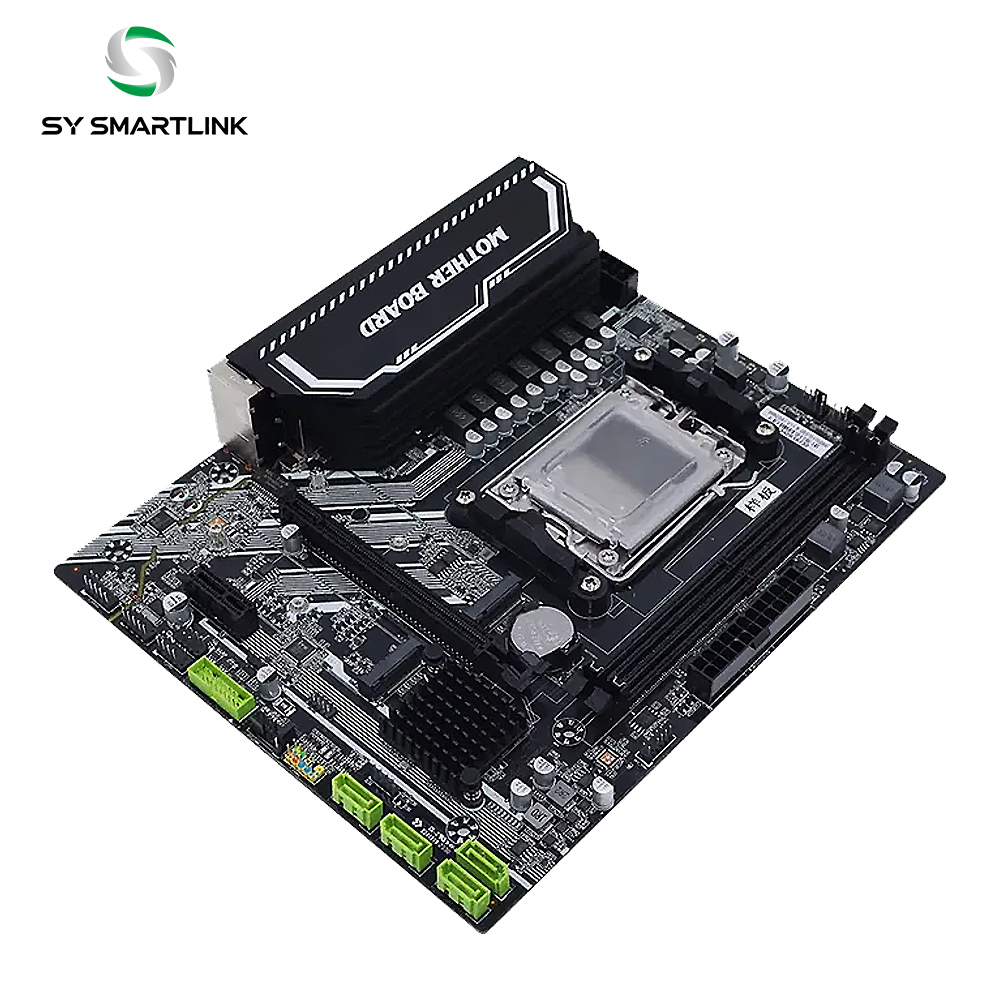

Specification	B850DA1 V1.1
CPU	AMD socket AM5, Support AMD Ryzen 7000, 8000, 9000 Series processors
Chipset	AMD B850 Chipset
Memory	2*DDR5 4800/5600 UDIMM MAX 96GB
Display	1*VGA port / 1*DP port/ 1* HDMI port
Storage	4*SATA3.0 port
Network	Support Realtek RTL8125B 2500M Network
	optional Realtek RTL8111H 1000M Network
Audio	Support Realtek ALC897 High Definition Audio
Expansion Slots	1*PCIe 4.0 X16 slot /1*PCIe 3.0 X1 slot

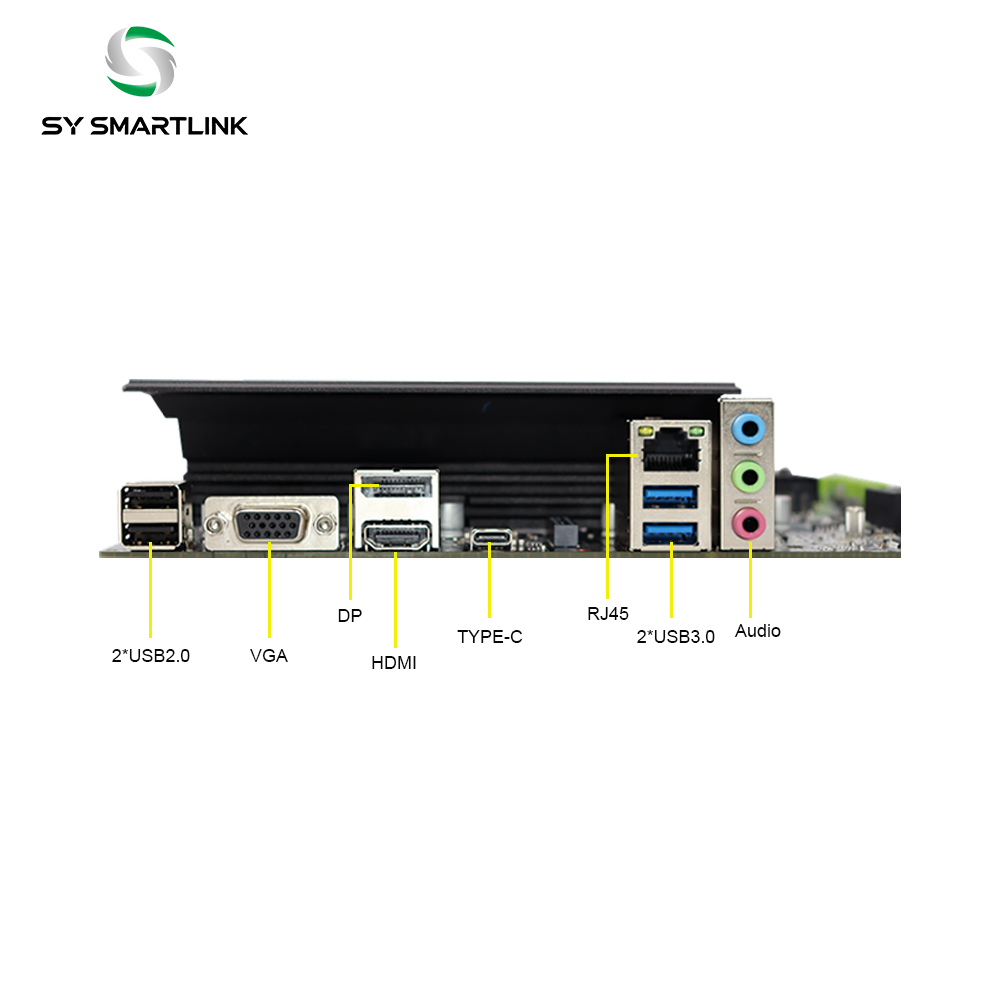

Rear I/O	1*HDMI port
	2*USB2.0 port(optional KB_MS)
	1*VGA port(optional HDMI)
	2*USB3.2 Gen1 port
	1*AUDIO_JACK(LINE_IN/LINE_OUT/MIC_IN)
	1*DP port
	1*TYPE_C port
	1*M.2_WIFI slot
	1*RJ45 port

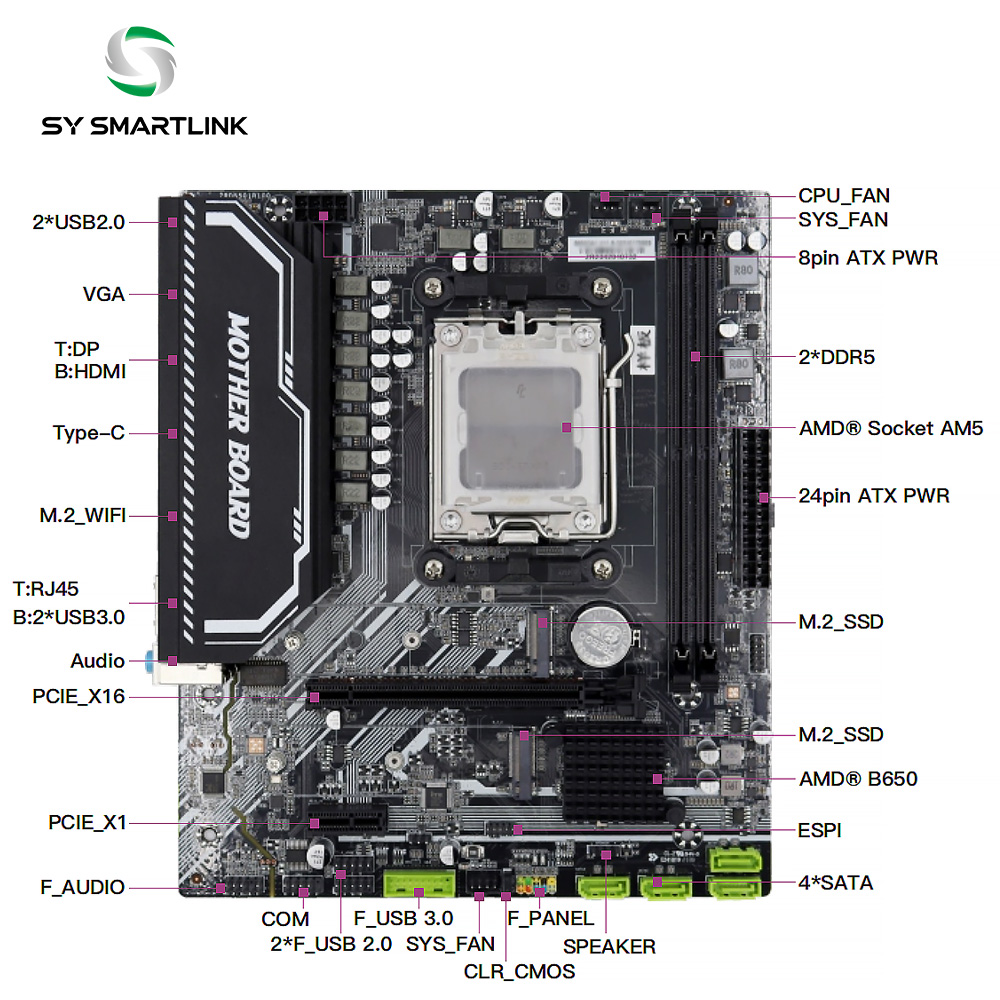

Front I/O	1*COM connector
	1*CLR_CMOS connector
	1*ATX_24P Power connector
	1*F_PANEL connector
	1*ATX_8P Power connector
	1*ESPI connector
	1*SPEAKER connector
	1*TPM connector(optional TPM module)
	1*F_AUDIO connector
	1*F_USB3.0 connector
	L_support 2*USB3.0 port
	2*F_USB2.0 connector
	L_support 4*USB2.0 port
	2*SYS_FAN connector
	1*CPU_FAN connector
Support System	Windows 11, Windows 10 64-bit
BIOS	UEFI AMI BIOS
PCB size	Micro-ATX (192mm x 230mm) 6 mounting holes

OEM/ODM Custom Service

Shenzhen Sy Smartlink Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacturing, and sales of computer hardware products

One-stop full custom service from design to mass production, build your brand easily

Full Customization Solution For Your Brand

We provide OEM, ODM, CKD, SKD, and fully customized solutions across hardware functionality, motherboard structure, industrial design, software, packaging, and branding. No matter you are a start-up brand or a mature enterprise, we can meet your custom needs.

Custom packaging box, user manual, brand labeling, certification support, full brand service.
