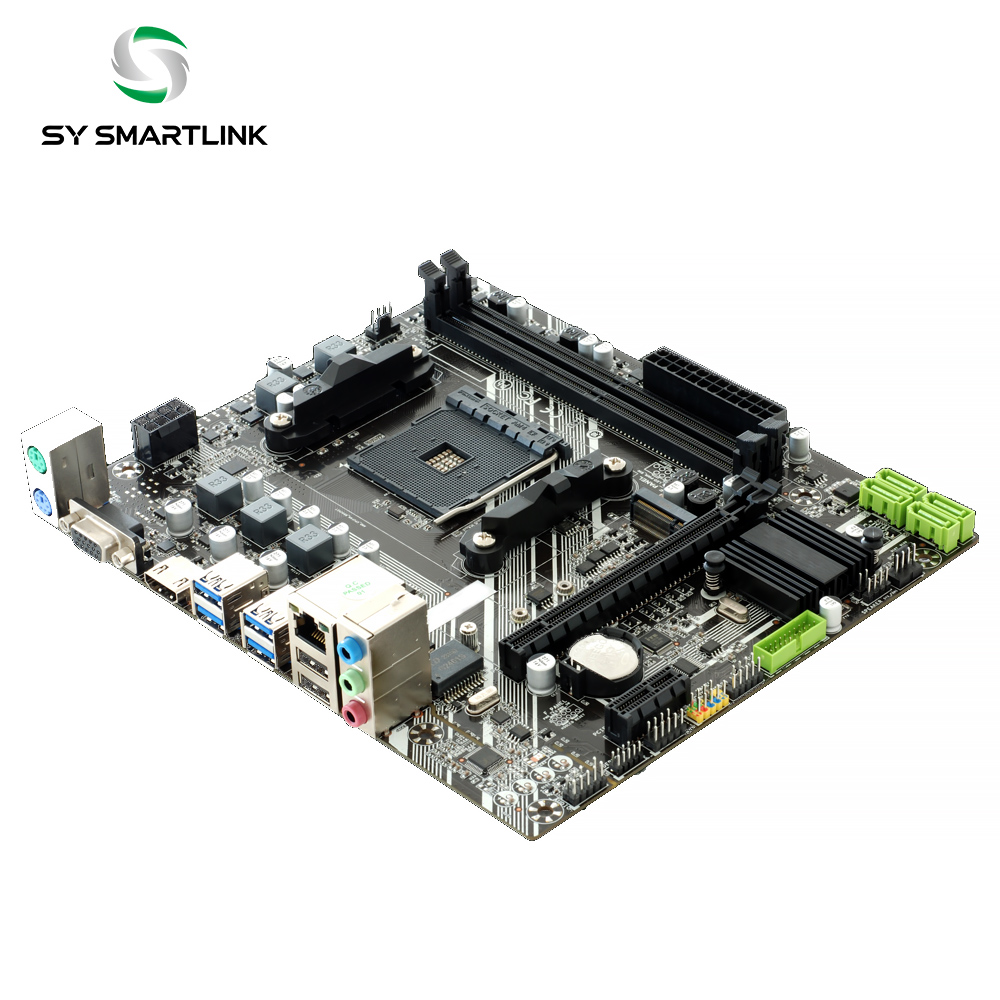

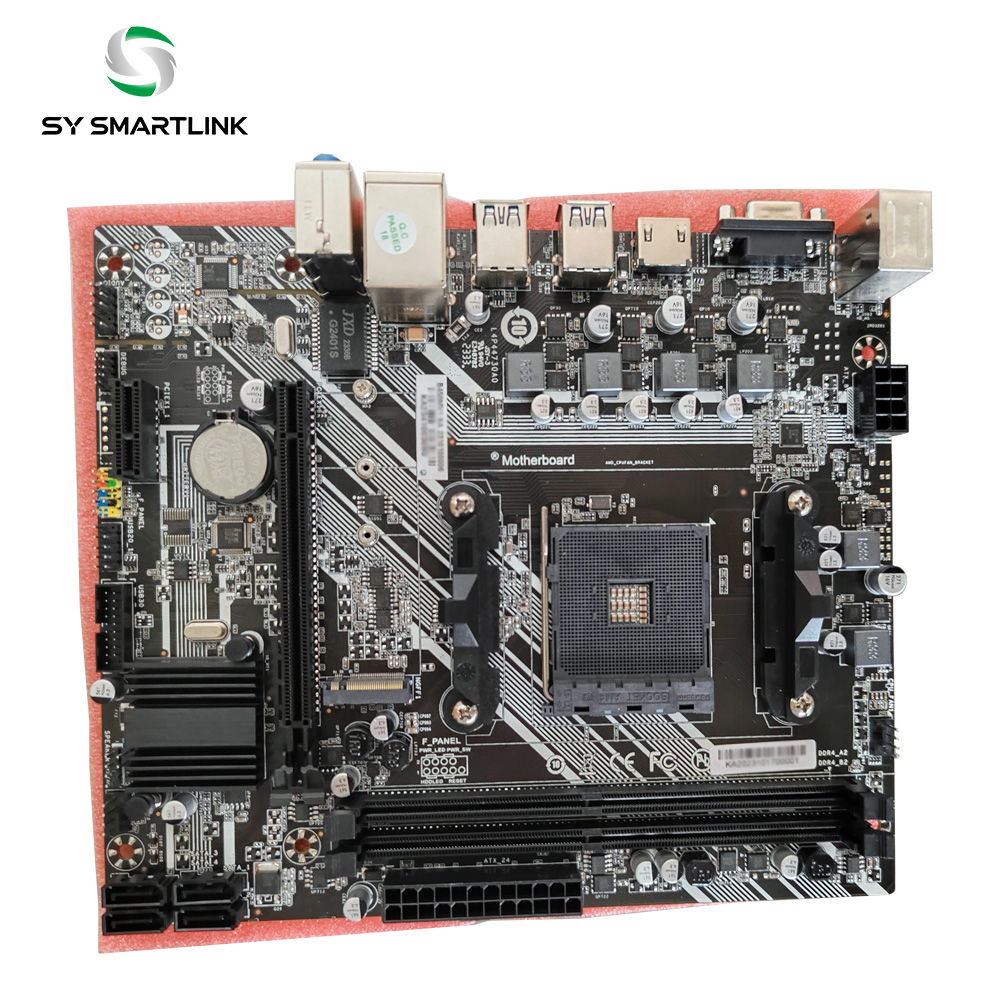

Product Description

Specification	B450DA1 V1.2
CPU	AMD socket AM4 LGA1331 support AMD Ryzen 1000/2000/3000/4000/5000 processors
Chipset	AMD B450 Chipset
Memory	2*DDR4 2133/2400/2666/2933/3200 DIMM MAX 64GB
Display	1*VGA port / 1*HDMI port
Storage	4*SATA3.0 port 6Gb/s
	1*M.2_SSD( M key NVME 2242/2260/2280)
Network	Support 1* RTL8111H 10/100/1000Mbps Ethernet
	Optional Realtek RTL8106E 10/100Mbps Ethernet support Wake On LAN
Audio	Support Realtek ALC897 high fidelity audio controller
	Optional Realtek ALC662 high fidelity audio controller
Expansion Slots	1*PCIe3.0 X16 slot/1*PCIe3.0 x1 slot

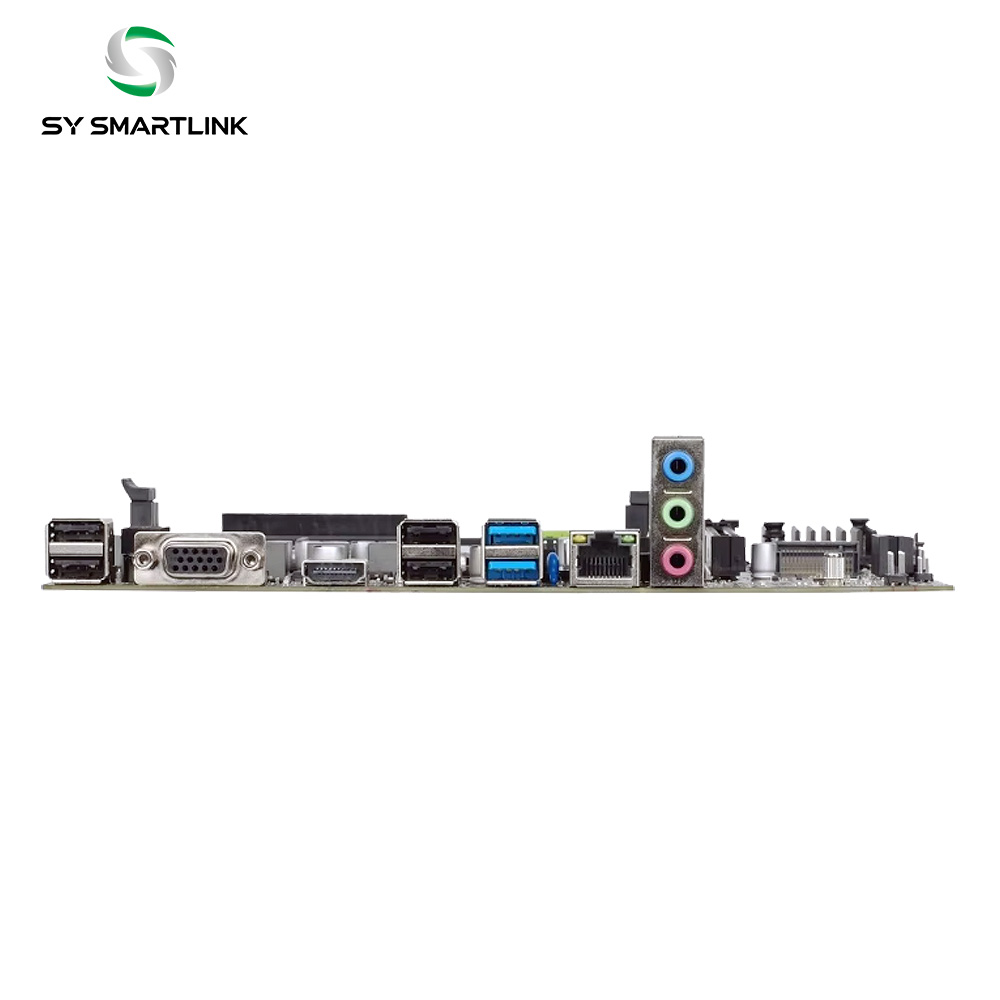

Rear I/O	1*HDMI port
	1*RJ45 port
	1*VGA(D-SUB) port
	1*KB_MS port(colay 2*USB2.0)
	2*USB2.0 port
	4*USB3.2 Gen1 port
	1*AUDIO JACK(LINE_IN/LINE_OUT/MIC_IN)
Front I/O	1*CLR_CMOS connector
	1*F_PANEL connector
	1*Speaker connector
	1*SYS_FAN connector
	1*CPU_FAN connector
	1*ATX_24P power port
	1*ATX_8P power port
	1*F_AUDIO connector
	1*DEBUG connector
	1*COM connector
	1*F_USB2.0 connector
	Support additional 2*USB2.0 port
	1F_USB3.0 connector
	Support additional 2*USB3.0 port
Support System	Windows 11, Windows 10
BIOS	UEFI AMI BIOS
PCB size	Micro-ATX (215mm x 185mm), 6 mounting holes
