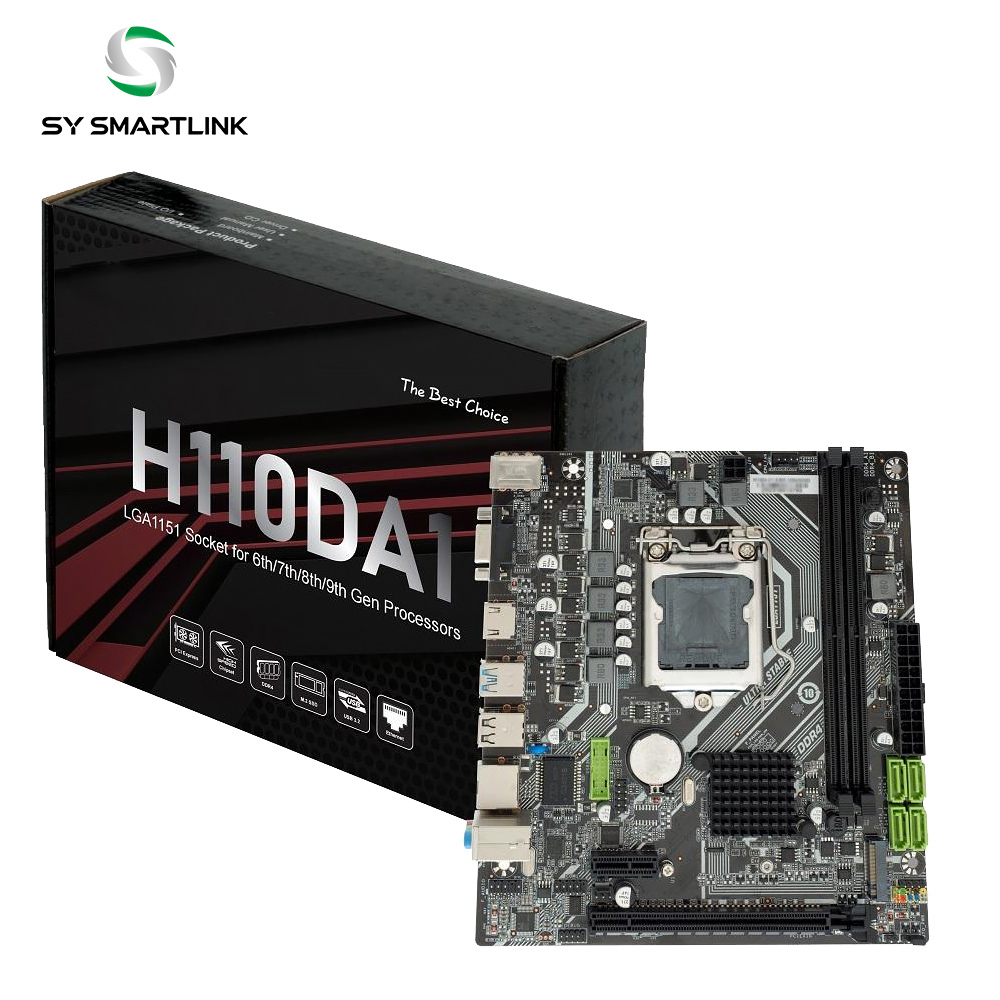

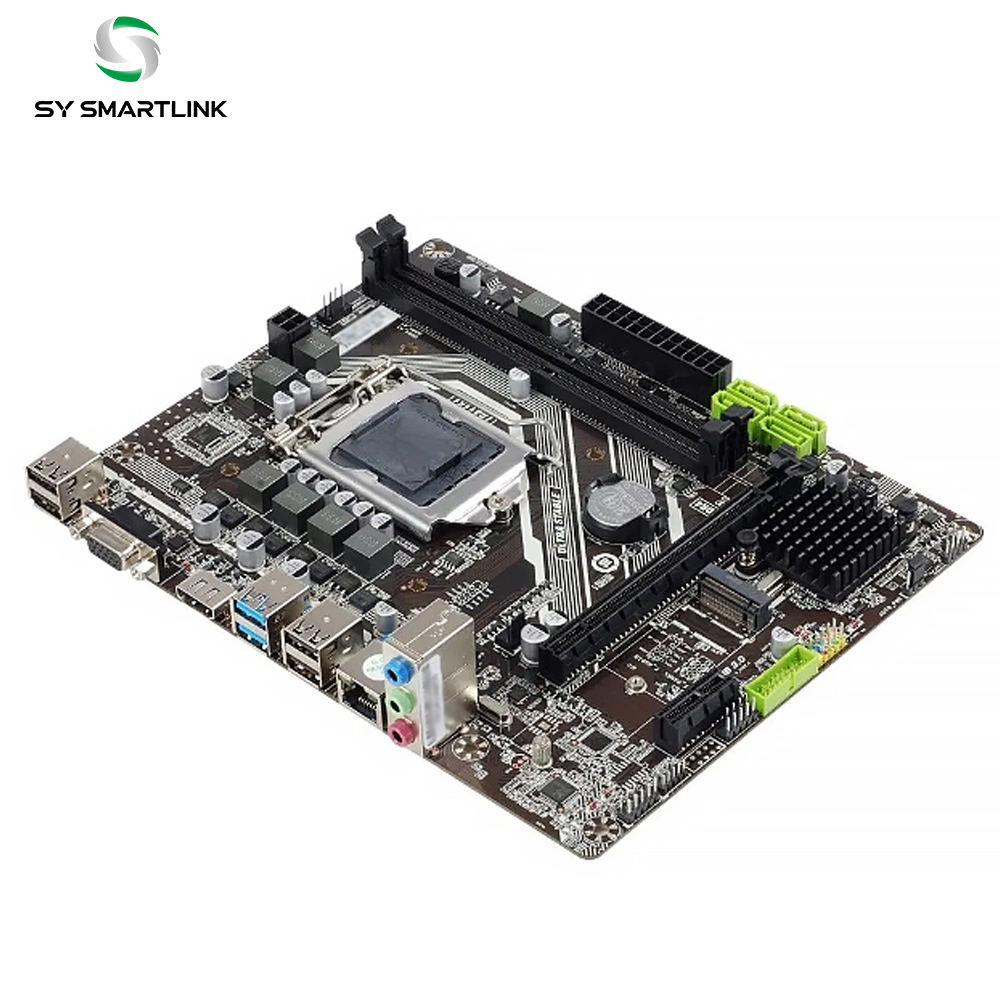

LGA1151 Intel H110 Chipset 6th/7th/8th/9th Intel Celeron/Pentium/Core DDR4 SSD ATX Computer Motherboard

Shenzhen Sy Smartlink Technology Co., Ltd,

OEM/ODM PC Factory, White Label Computer Supplier,

20+ Years Of Computer Hardware Manufacturing,

One-stop Computer Full Custom Service, Build Your Brand Easily.

Scroll for more details ↓

Features

Product Description

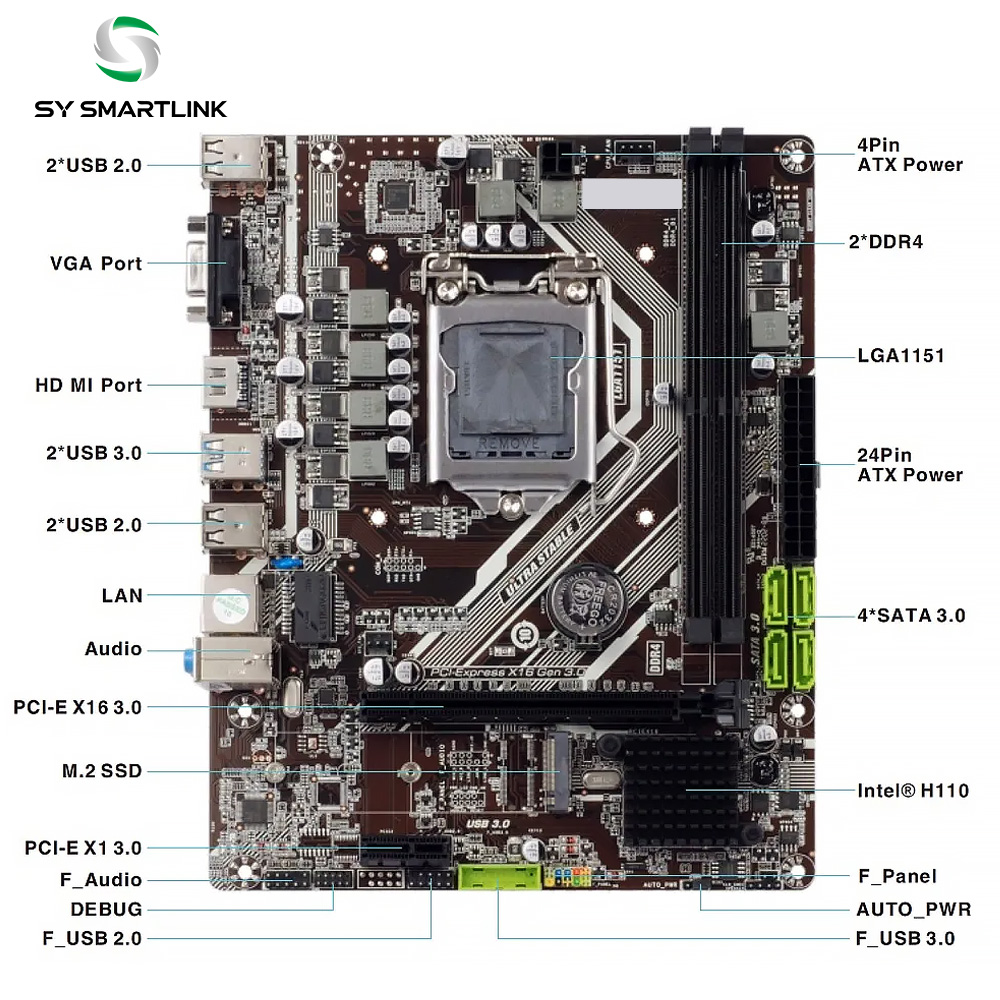

Specification	H110DA1 V5.1
CPU	Support LGA1151 6th/7th/8th/9th Intel Celeron/Pentium/Core i3/i5/i7/i9 processors
Chipset	Intel H110 Chipset
Memory	2*DDR4 UDIMM Slots, support 2666MHz memory, up to 64GB
Display	1VGA port / 1HDMI port
Storage	1*M.2 SSD( M key Type 2242/2280, support PCIe X4)
Storage	4*SATA3.0
Network	1*Realtek RTL8111H 1Gb Ethernet,
Network	supports network wake up /pxe
Audio	1*Realtek ALC897 High fidelity audio controller,
Audio	support Line_in, Line_out, Mic_in
Expansion Slots	1PCIe X16 Slot/1PCIe X1 Slot

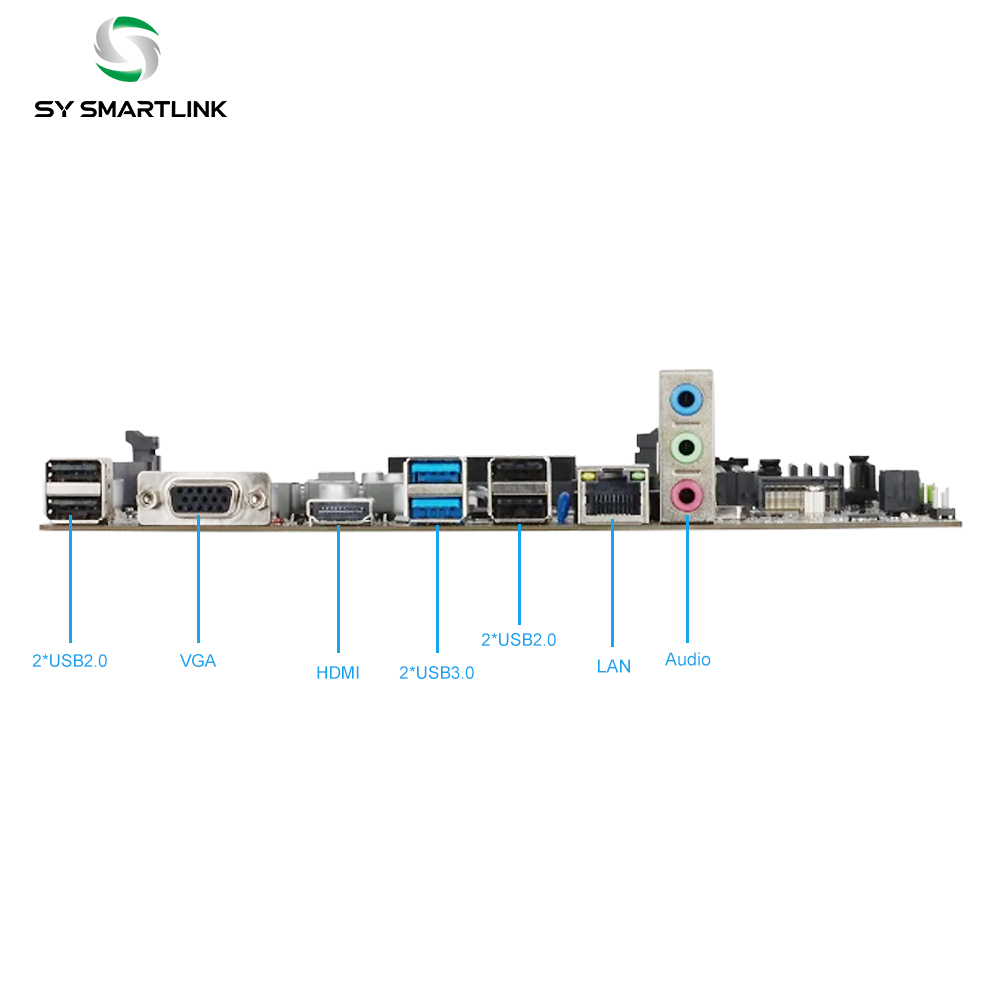

Rear I/O	2*USB2.0 ports
	1*VGA port
	1*HDMI port
	2*USB3.2 Gen1 5G ports
	2*USB2.0 ports
	1*RJ45 1G port
	3*Audio Jacks
Front I/O	1*F_AUDIO header
	1*COM header
	1*F_USB2.0 header, support
	2*USB2.0 ports
	1*F_USB3.0 header, support
	2*USB3.2 Gen 1 ports
	1CPU_FAN 4pin/1SYS_FAN 3 pin
	1*F_PANEL header
	1*ATX_24pin Power connector
	1*ATX_4pin Power connector
	1*DEBUG header
Support System	Windows 11, Windows 10, Windows 7
BIOS	UEFI AMI BIOS
PCB size	Micro-ATX (170mm x 215mm) 4 mounting holes
