Product Description

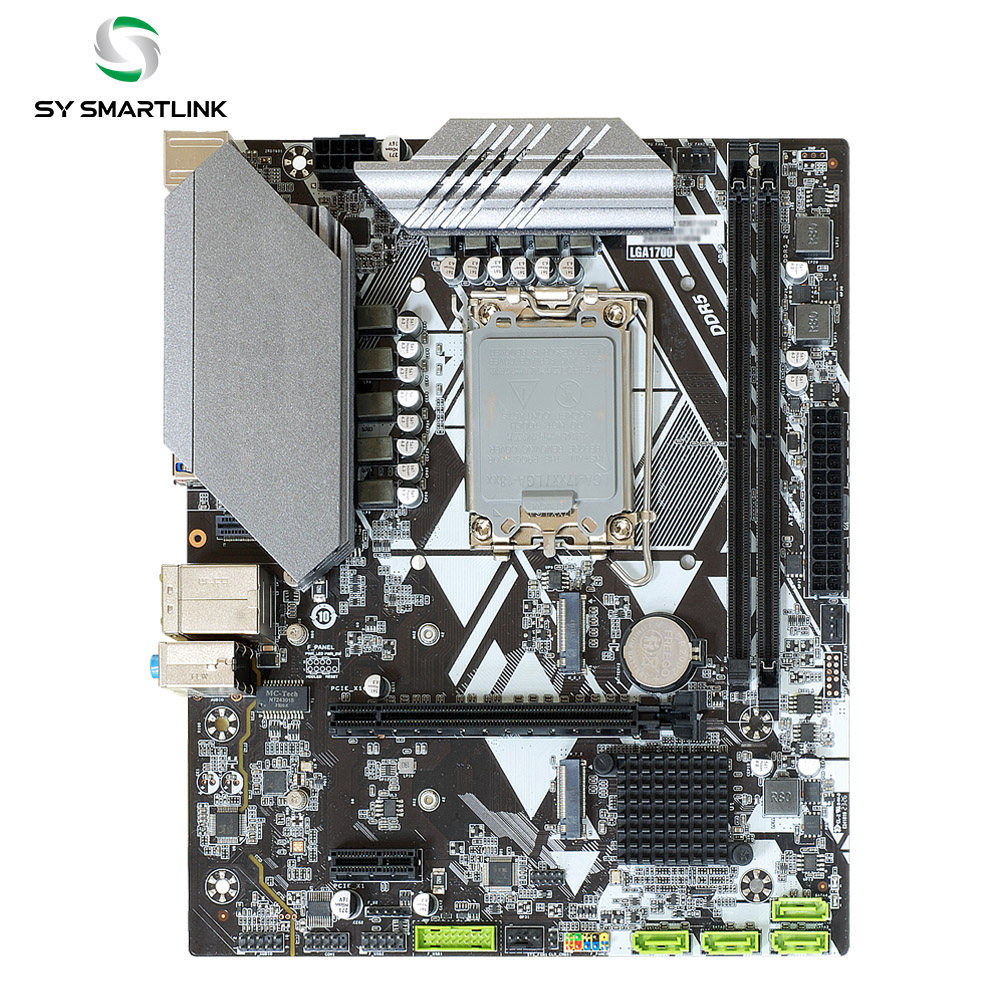

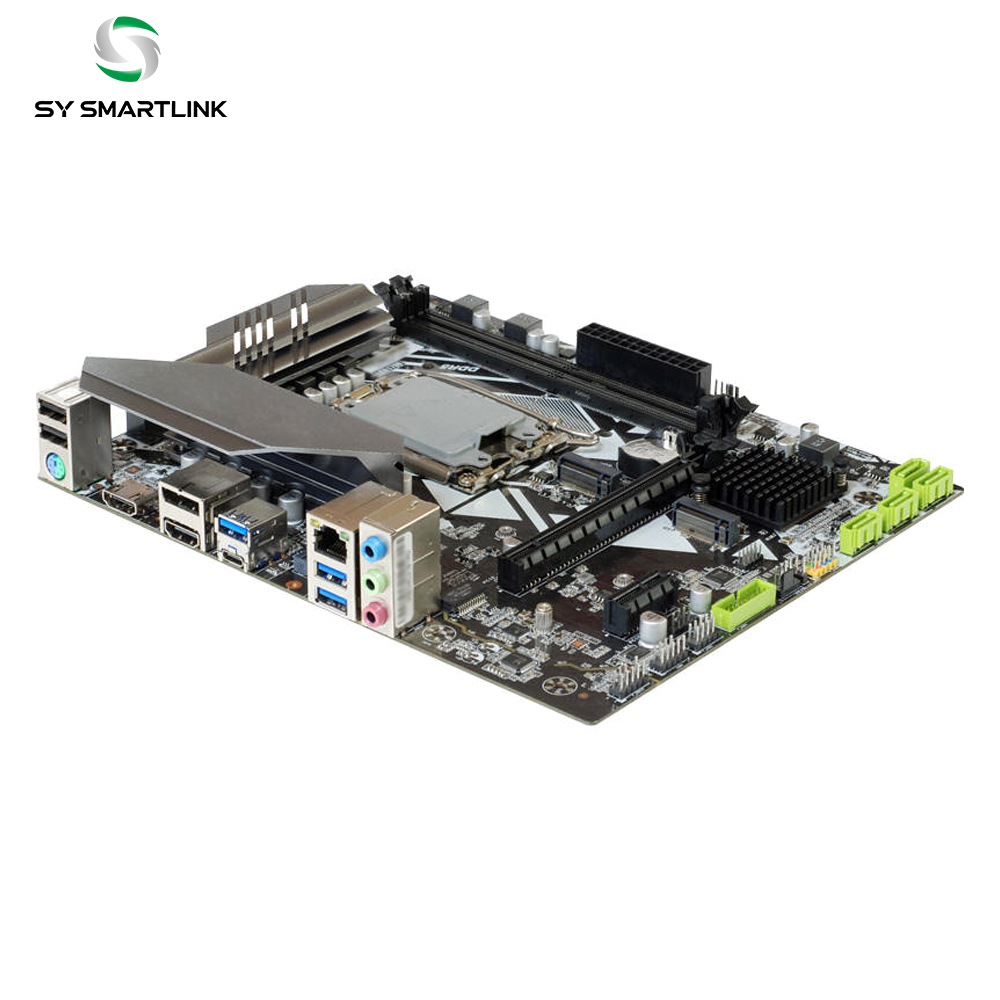

Specification	B760DA1 V1.1
CPU	Intel Socket LGA1700
	support 12th/13th/14th core i3/i5/i7/i9/pentium/celeron
Chipset	Intel B760 Chipset
Memory	2*DDR5 UDIMM slot 4800MHz MAX 64GB
Display	1* HDMI port (optional VGA) / 1* DP port/ 1* HDMI port
Storage	4*SATA3.0 port
Network	Realtek RTL8125B 2500Mbps
	Optional Realtek RTL8111H 1000Mbps
Audio	support Realtek ALC662 High Definition Audio
	Optional Realtek ALC897 High Definition Audio
Expansion Slots	1* PCIe 4.0/5.0 X16 slot
	1* PCIe 3.0 X1 slot
	1* M.2_WIFI support CNVi

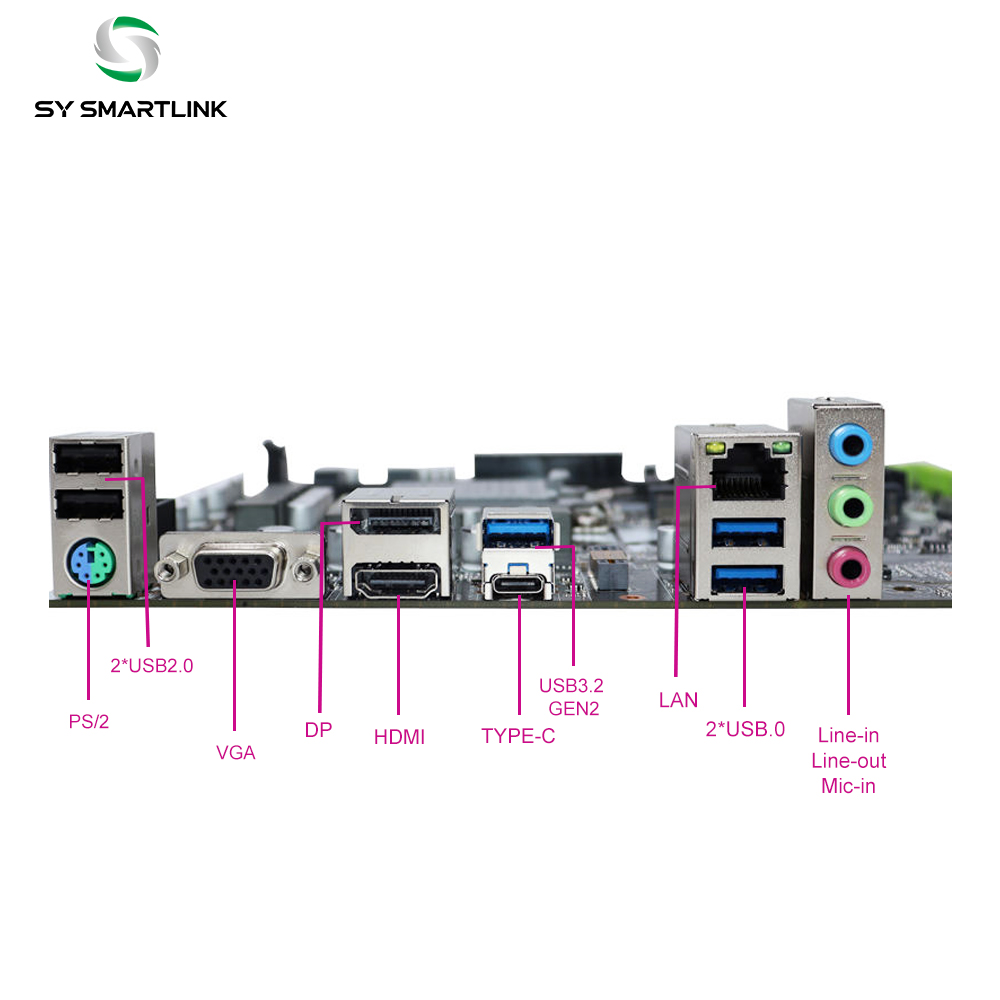

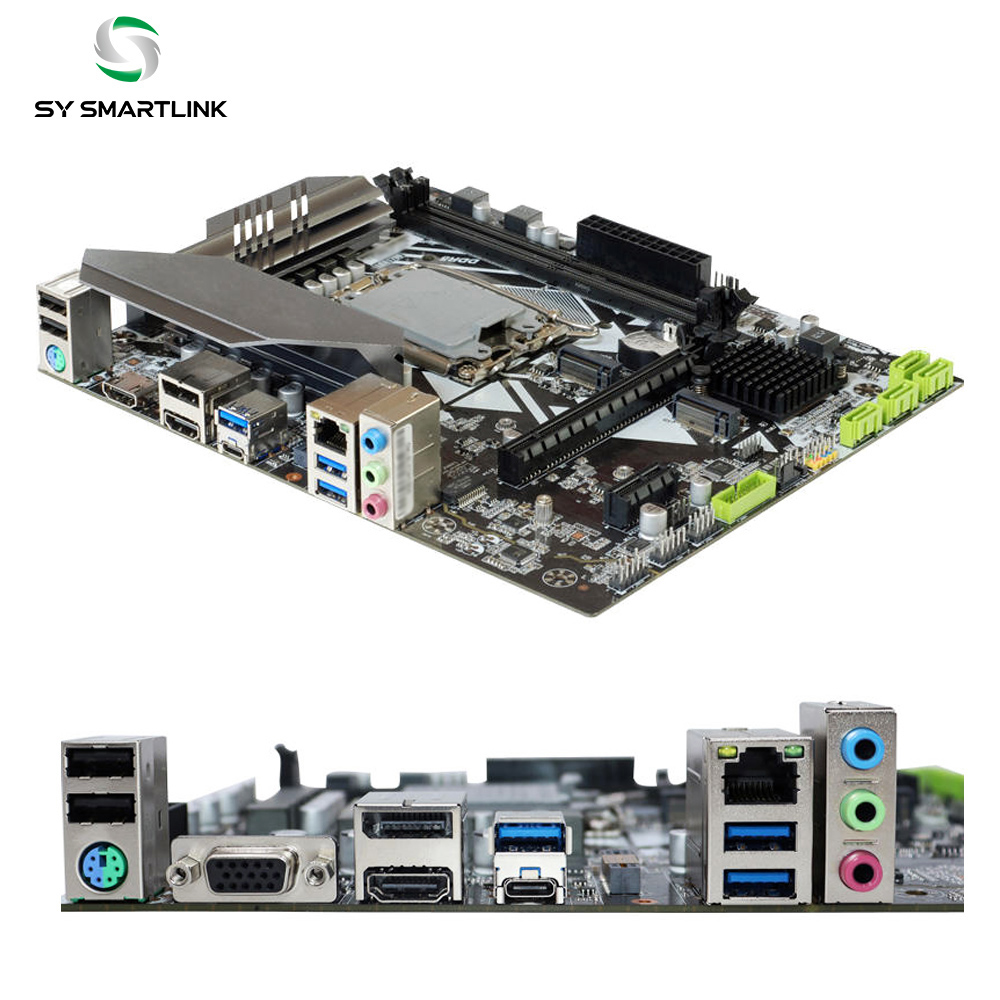

Rear I/O	1* PS/2+2*USB2.0 port
	1*VGA port colay HDMI port
	1* USB3.2 Gen2 port
	2* USB3.2 Gen1 port
	1* RJ45 port
	1* M.2_WIFI
	1* HDMI+DP port
	1* TYPE_C port
	1* AUDIO_JACK(LINE_IN/LINE_OUT/MIC_IN)
Front I/O	1* F_AUDIO connector
	1* COM connector
	2* F_USB2.0 connector
	1* F_USB3.0 connector
	L support 4*USB2.0 port
	L support 2*USB3.0 port
	1*ESP1 connector
	1* CLR_CMOS connector
	2* SYS_FAN connector
	2* CPU_FAN connector
	1* F_PANEL connector
	1* XMP connector
	1* TPM connector
	1* ATX_24P connector
	1* ATX_8P connector
Support System	Windows 11, Windows 10 64-bit
BIOS	UEFI AMI BIOS
PCB size	Micro-ATX (190mm x 230mm) 6 mounting holes

OEM/ODM Custom Service

Shenzhen Sy Smartlink Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacturing, and sales of computer hardware products

One-stop full custom service from design to mass production, build your brand easily

Full Customization Solution For Your Brand

We provide OEM, ODM, CKD, SKD, and fully customized solutions across hardware functionality, motherboard structure, industrial design, software, packaging, and branding. No matter you are a start-up brand or a mature enterprise, we can meet your custom needs.

Custom packaging box, user manual, brand labeling, certification support, full brand service.
