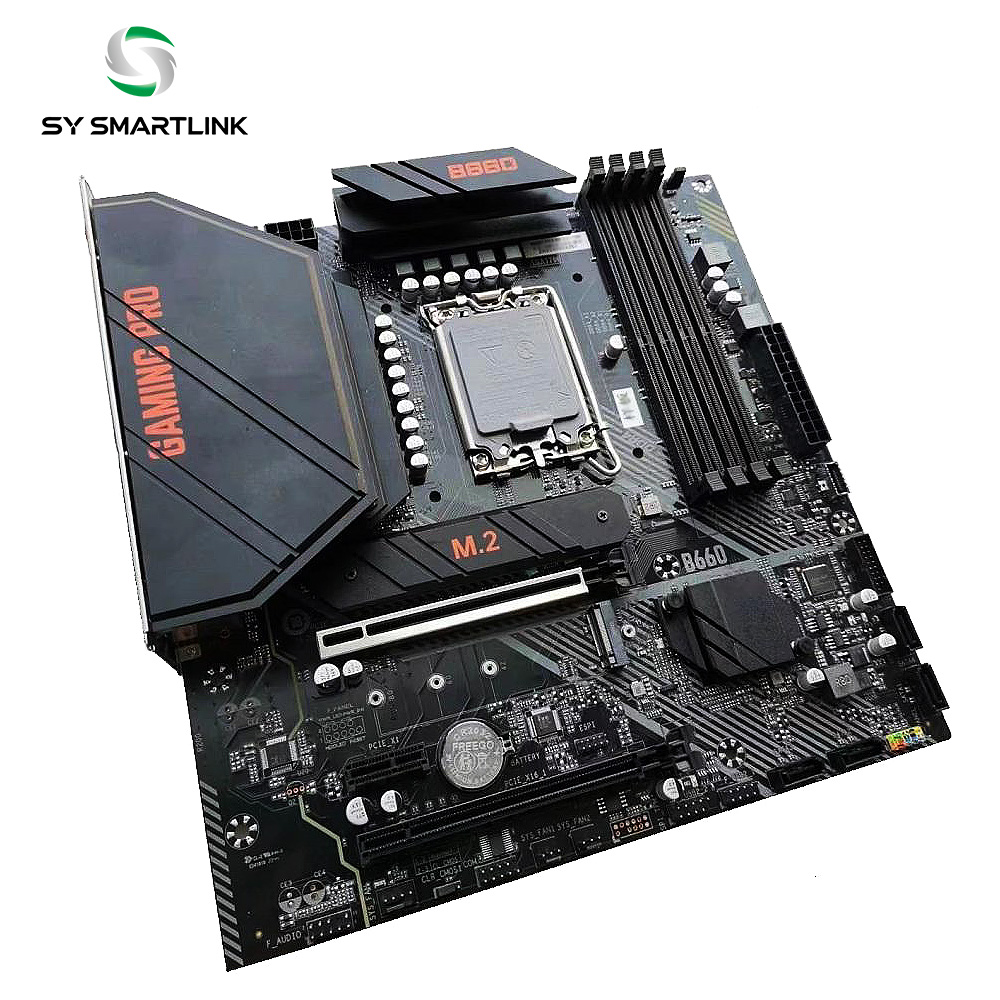

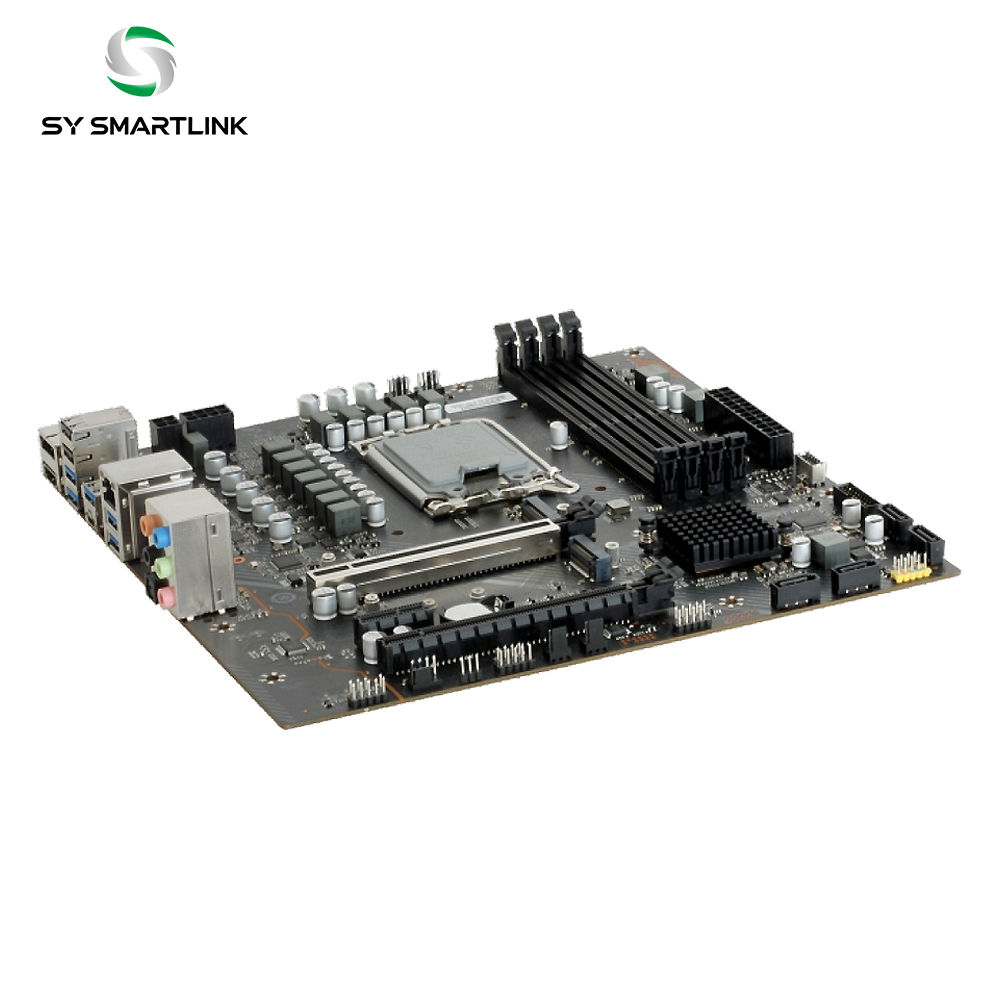

LGA1700 Intel Core i3/i5/i7/i9/Pentium/Celeron 12/13/14th gen B660 Motherboard

CPU: Intel socket LGA1700 support Intel 12/13/14th Core i3/i5/i7/i9, Pentium, Celeron processor

Chipset: Intel B660 Chipset

Memory: 4*DDR4 2133/2400/2666/2933/3200 DIMM MAX 128GB

Display: 1 * HDMI port, 1 * DP port

Storage: 4 * SATA3.0, 2 * M.2 slot

Network: Support Realtek RTL8125B 2500M

Audio:Support Realtek ALC897 High Definition Audio / Optional Realtek ALC662 High Definition Audio

Expansion Slots: 2*PCIe X16 slot / 1*PCIe X1 slot / 2*M.2_SSD / 1*M.2 WIFI

Scroll for more details ↓

Features

Product Description

Specification	Details

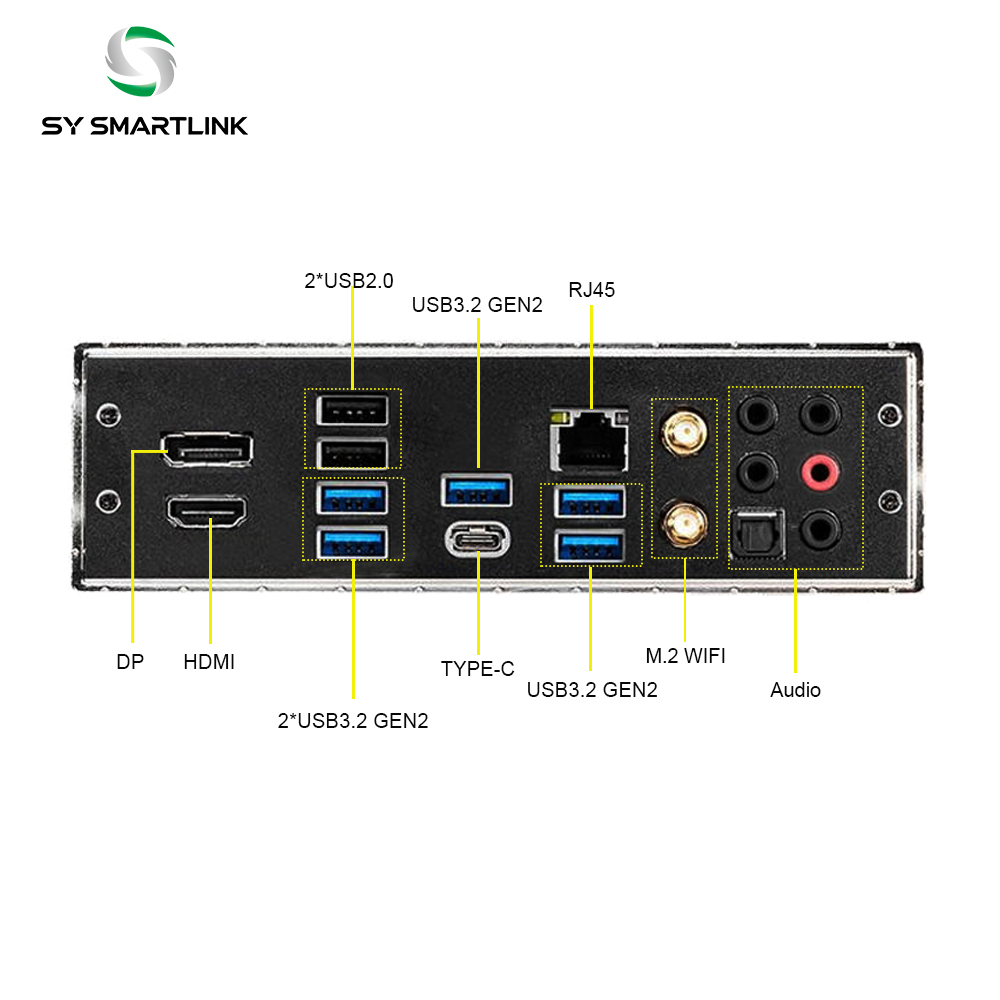

Rear I/O	1*DP port
	1*RJ45 port
	1*HDMI port
	1*6 holes audio port
	1*TYPE_C port
	1*M.2_WIFI port
	2*USB2.0 port
	4*USB3.2 GEN2 port
	1*USB3.2 GEN1 port

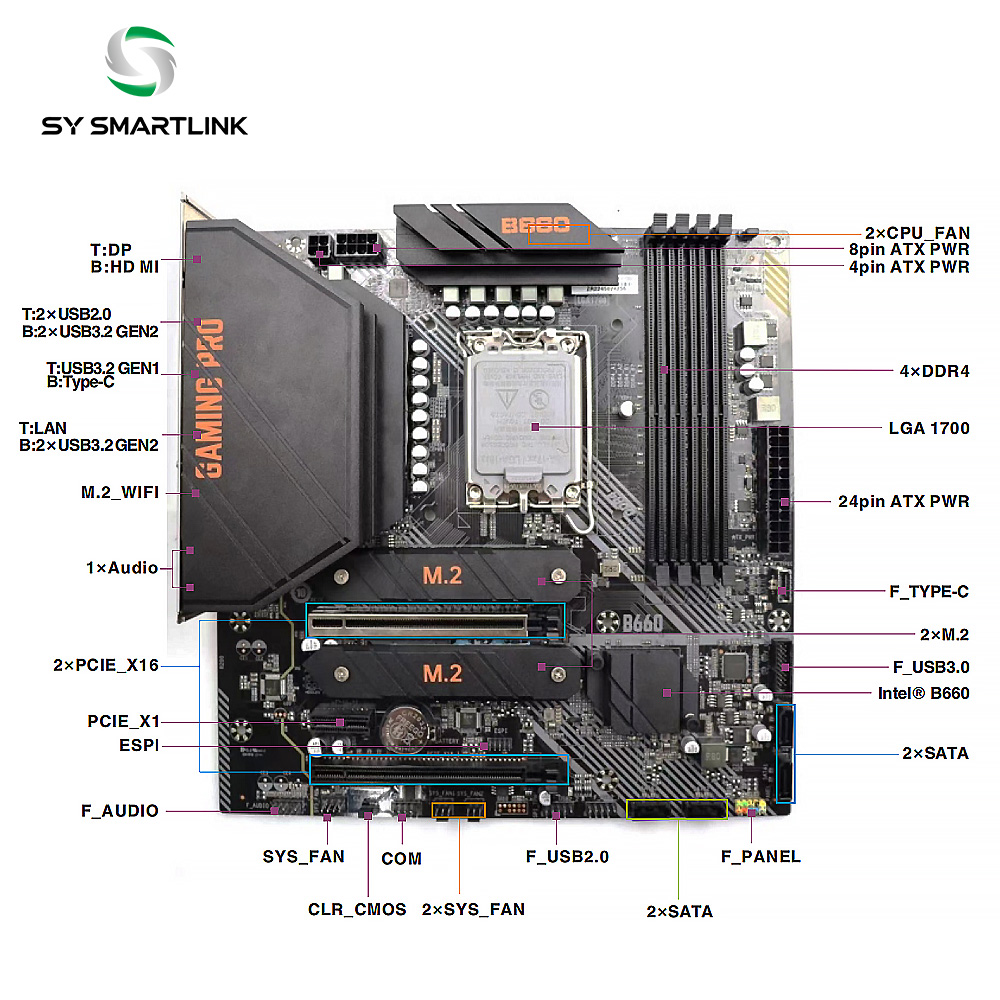

Front I/O	1*F_AUDIO pin header
	1*F_USB3.0 pin header
	1*SYSFAN 4pin header
	2*CPU_FAN pin header
	1*CLR_CMOS pin header
	1*24pin ATX_PWR
	1*COM pin header
	1*8pin ATX_PWR
	2*SYS_FSN 3pin header
	1*4pin ATX_PWR
	1*TPM pin header(Reserve)
	2*F_USB2.0 pin header
	1*F_PANEL pin header
	1*ESPI header
Support System	Windows 11, Windows 10 64-bit
BIOS	UEFI AMI BIOS
PCB size	Micro-ATX (244mm *244mm)

OEM/ODM Custom Service

Shenzhen Sy Smartlink Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacturing, and sales of computer hardware products

One-stop full custom service from design to mass production, build your brand easily

Full Customization Solution For Your Brand

We provide OEM, ODM, CKD, SKD, and fully customized solutions across hardware functionality, motherboard structure, industrial design, software, packaging, and branding. No matter you are a start-up brand or a mature enterprise, we can meet your custom needs.

Hardware Customization
Motherboard circuit design, structure customization, interface customization.
Industrial Design
Shell appearance design, mold opening, material selection, color matching, logo customization.
Software Customization
System pre-installation, boot logo customization, software pre-installation, function customization.
Packaging & Branding

Custom packaging box, user manual, brand labeling, certification support, full brand service.

Our Custom Process

① ➟ ② ➟ ③ ➟ ④ ➟ ⑤ ➟ ⑥

Demand Communication

Scheme Design

Sample Making

Sample Testing

Mass Production

Delivery & Service

Understand your custom needs

and product requirements

Provide custom solution

and quotation for you

Produce prototype

sample for your confirmation

Test and adjust the

sample according to your feedback

Formal mass productionafter

sample confirmation

On-time delivery and after-sales

technical support
