AMD Ryzen 3000 4000 5000 Processor B550 Chipset DDR4 Micro ATX Motherboard For PC

Shenzhen Sy Smartlink Technology Co., Ltd, OEM/ODM Computer Manufacturer

CPU Support : AMD Ryzen 3000,4000,5000 processors

Chipset : AMD B550 Chipset

Memory : 4*DDR4 2133/2400/2666/2933/3200 DIMM MAX 128GB

Display: 1*DP port / 1*HDMI port

Storage: 4*SATA3.0 port

Network: Support Realtek RTL8125B 2500M

Audio: support Realtek ALC897 High Definition Audio/Optional Realtek ALC662 High Definition Audio

Expansion Slots: 2*PCIe X16 slot /1*PCIe x1 slot/2*M.2_SSD/ 1*M.2 WIFI

Scroll for more details ↓

Features

Product Description

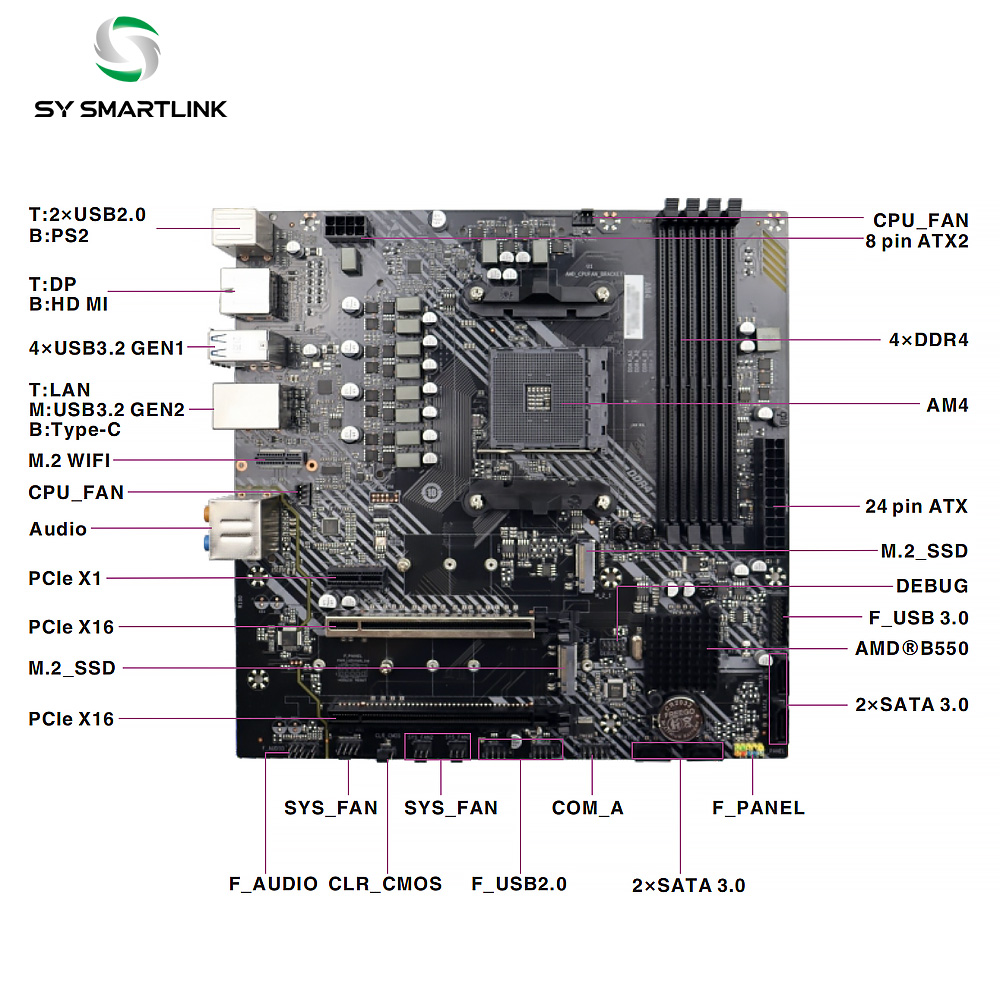

Specification	B550DA1 V1.1

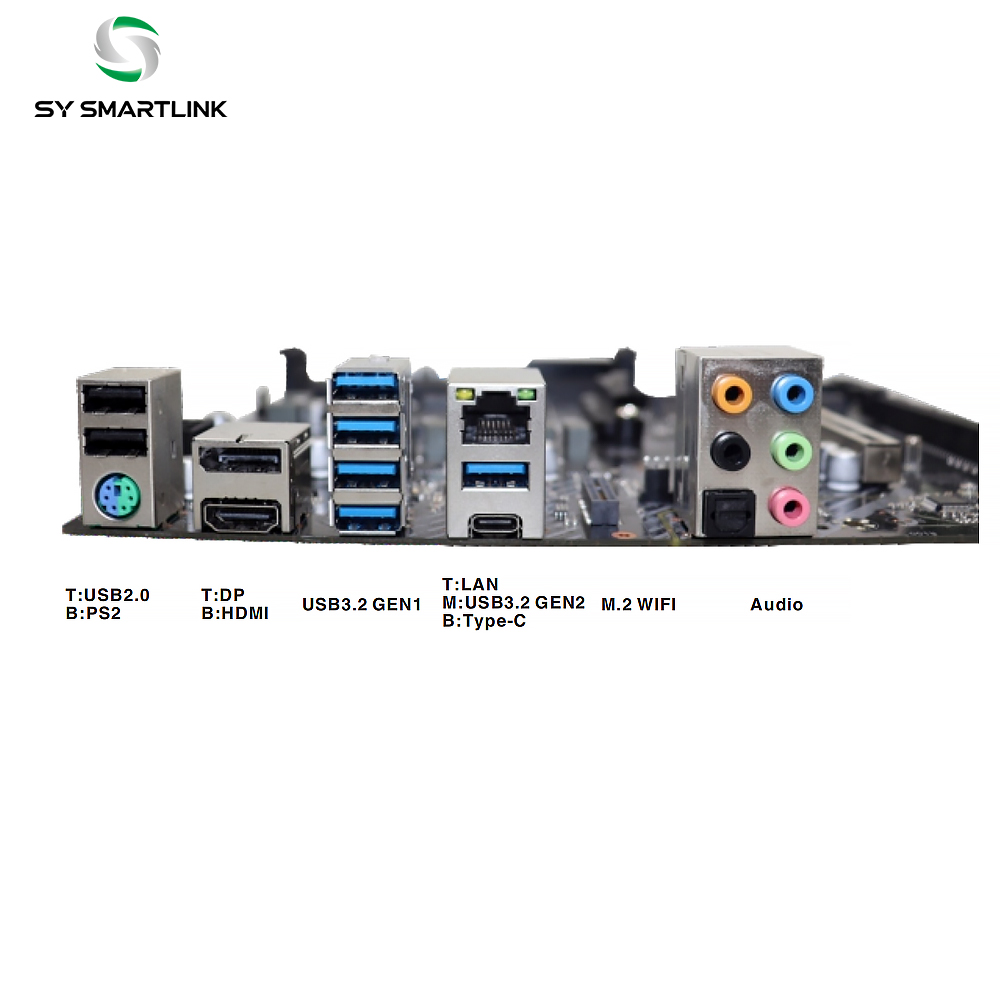

Rear I/O	1*DP port
	1*RJ45 port
	1*HDMI port
	1*6 holes audio port
	1*TYPE_C port
	1*M.2_WIFI port
	2*USB2.0 port
	1*PS/2 port
	4*USB3.2 Gen1 port
	1*USB3.2 Gen2 port
Front I/O	1*F_AUDIO pin header
	1*F_USB3.0 pin header
	1*SYSFAN 4pin header
	2*CPU_FAN pin header
	1*24pin ATX_PWR
	1*8pin ATX_PWR
	1*4pin ATX_PWR
	1*COM pin header
	1*CLR_CMOS pin header
	2*SYS_FAN 3pin header
	1*TPM pin header
	2*F_USB2.0 pin header
	1*F_PANEL pin header
Support System	Windows 11, Windows 10
BIOS	UEFI AMI BIOS
PCB size	Micro-ATX (244mm * 244mm) 8 mounting holes

OEM/ODM Custom Service

Shenzhen Sy Smartlink Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacturing, and sales of computer hardware products

One-stop full custom service from design to mass production, build your brand easily

Full Customization Solution For Your Brand

We provide OEM, ODM, CKD, SKD, and fully customized solutions across hardware functionality, motherboard structure, industrial design, software, packaging, and branding. No matter you are a start-up brand or a mature enterprise, we can meet your custom needs.

Hardware Customization
Motherboard circuit design, structure customization, interface customization.
Industrial Design
Shell appearance design, mold opening, material selection, color matching, logo customization.
Software Customization
System pre-installation, boot logo customization, software pre-installation, function customization.
Packaging & Branding

Custom packaging box, user manual, brand labeling, certification support, full brand service.

Our Custom Process

① ➟ ② ➟ ③ ➟ ④ ➟ ⑤ ➟ ⑥

Demand Communication

Scheme Design

Sample Making

Sample Testing

Mass Production

Delivery & Service

Understand your custom needs

and product requirements

Provide custom solution

and quotation for you

Produce prototype

sample for your confirmation

Test and adjust the

sample according to your feedback

Formal mass productionafter

sample confirmation

On-time delivery and after-sales

technical support
