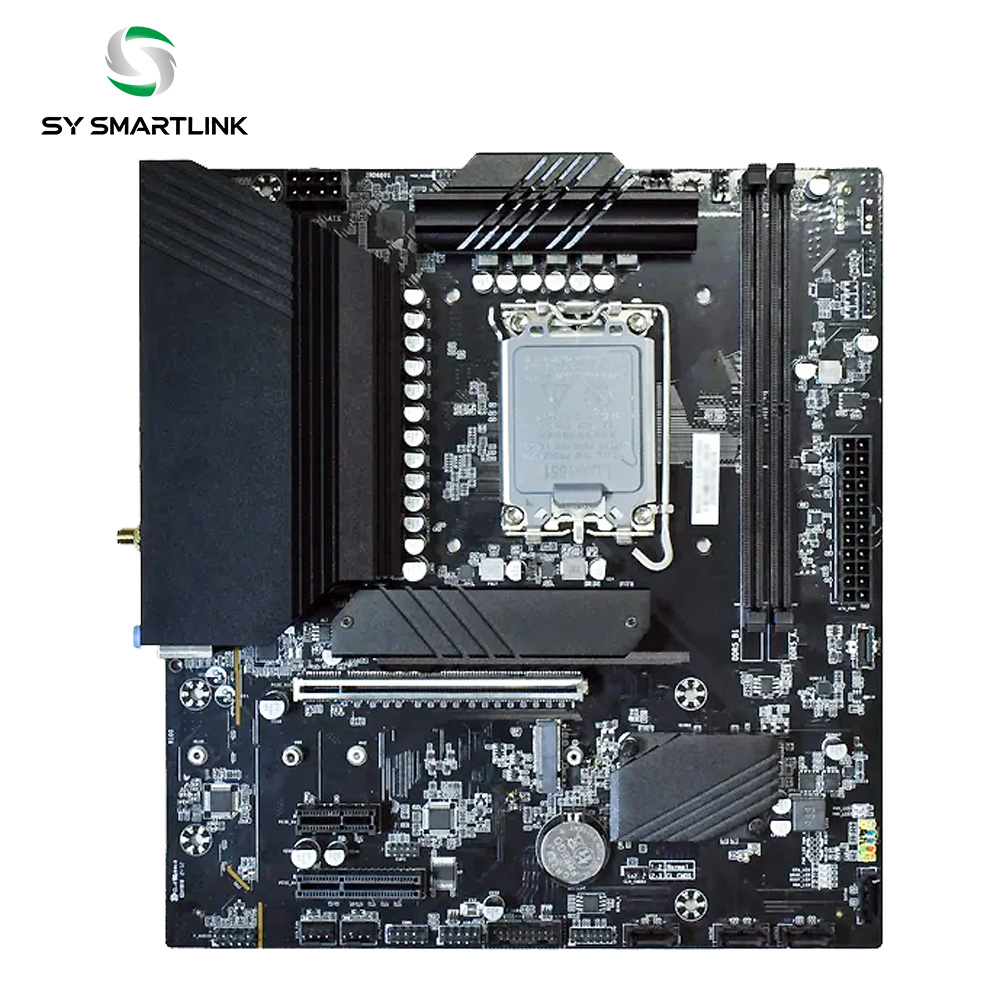

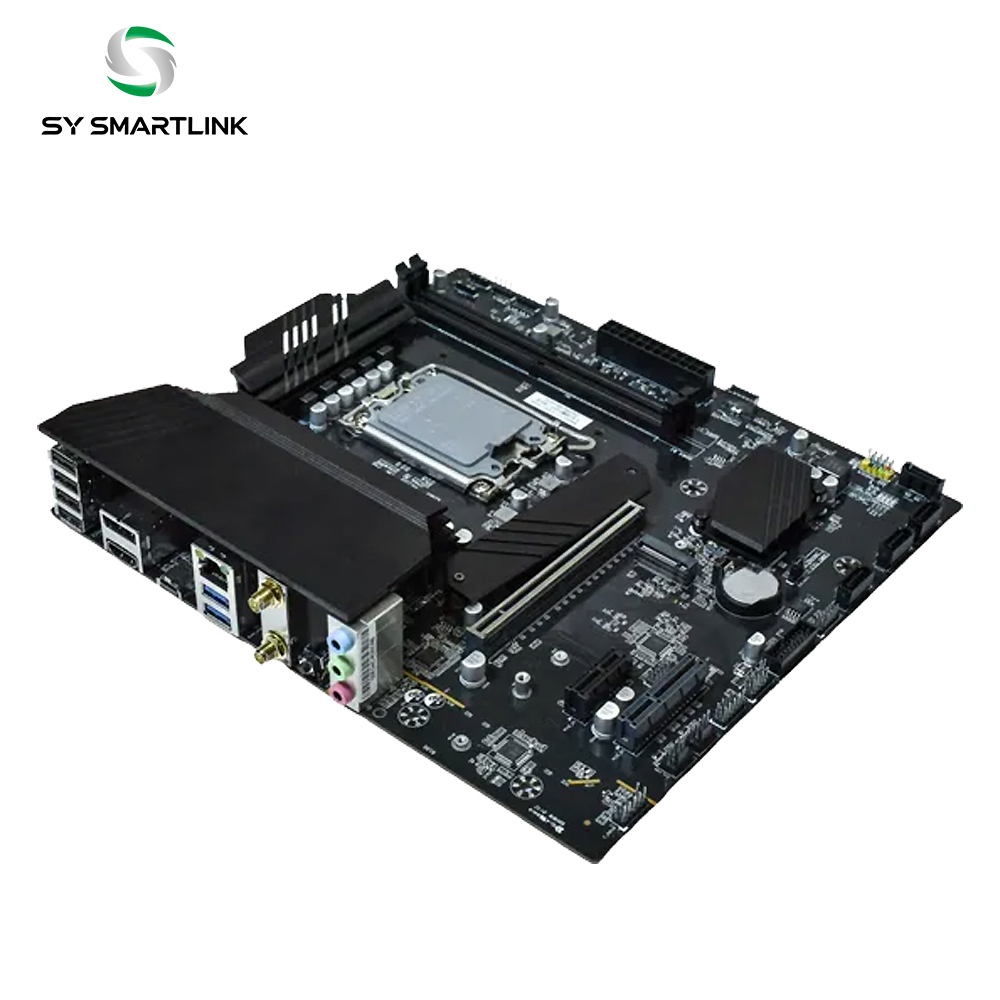

DDR5 B860 Chipset Intel Core Ultra Processor LGA1851 Micro-ATX Computer Motherboard

'-Intel® B860 Chipset

-Supports Intel@ Core Ultra Processors (Series 2)

-2*DDR5 UDIMM slots with up to 96GB memory capacity

-Support DDR5-6400/6200/6000/5800/5600/5400/5200/5000/4800 MHZ memory

-4*SATA 6Gb/s hard disk port

-1*PCle 5.0 *16 slot, 1*PCle 4.0 *1 slot

-1*PCle 4.0 *4 slot

-1* M.2_WIFI slot E key, support type 2230 support WIFI/BT/CNVi

-6*USB2.0 Type-A ports, 1*TYPE_C 10Gb port

-1*F_TYPE_C 10Gb port , 2*USB3.2 Gen2 Type-A ports

- 2*USB3.2 Gen1 Type-A ports

Scroll for more details ↓

Features

Product Description

System
Processor	Intel® Socket LGA1851
Processor	Supports Intel® Core™ Ultra Processors (Series 2)
Chipset	Intel® B860 Chipset
Memory Support	2*DDR5 DIMM slots with up to 96GB memory capacity (up to 48 GB in a single slot)
Memory Support	Support UD5-6400/6200/6000/5800/5600/5400/5200/5000/4800 MHZ memory
Graphic	1*HDMI 2.1 interface, support 4K 60Hz resolution
Graphic	1*DP 1.4 interface, support 8K 60Hz resolution
LAN	1*Realtek® RTL8125B 2.5Gb network adapter
Audio	1*Realtek® ALC897 High fidelity audio controller
Storage	1*M.2_SSD slot M key, support Type 2242/2280
	M.2 SSD (PCIe 5.0*4, CPU channel)
	1*M.2_SSD1 slot M key, support Type 2280/22110
	M.2 SSD (PCIe 4.0*4, PCH channel)
	4*SATA 6Gb/s hard disk port
Back Panel
4*USB 2.0 Type-A ports	2*USB 3.2 Gen2 Type-A ports
1*HDMI 2.1 port	1*M.2_WIFI expansion slot
1*DP 1.4 port	1*CLR_CMOS button
1*TYPE_C 10Gb port	1*AUDIO_JACK
1*RJ45 2.5G network port	(LINE_IN/LINE_OUT/MIC_IN)

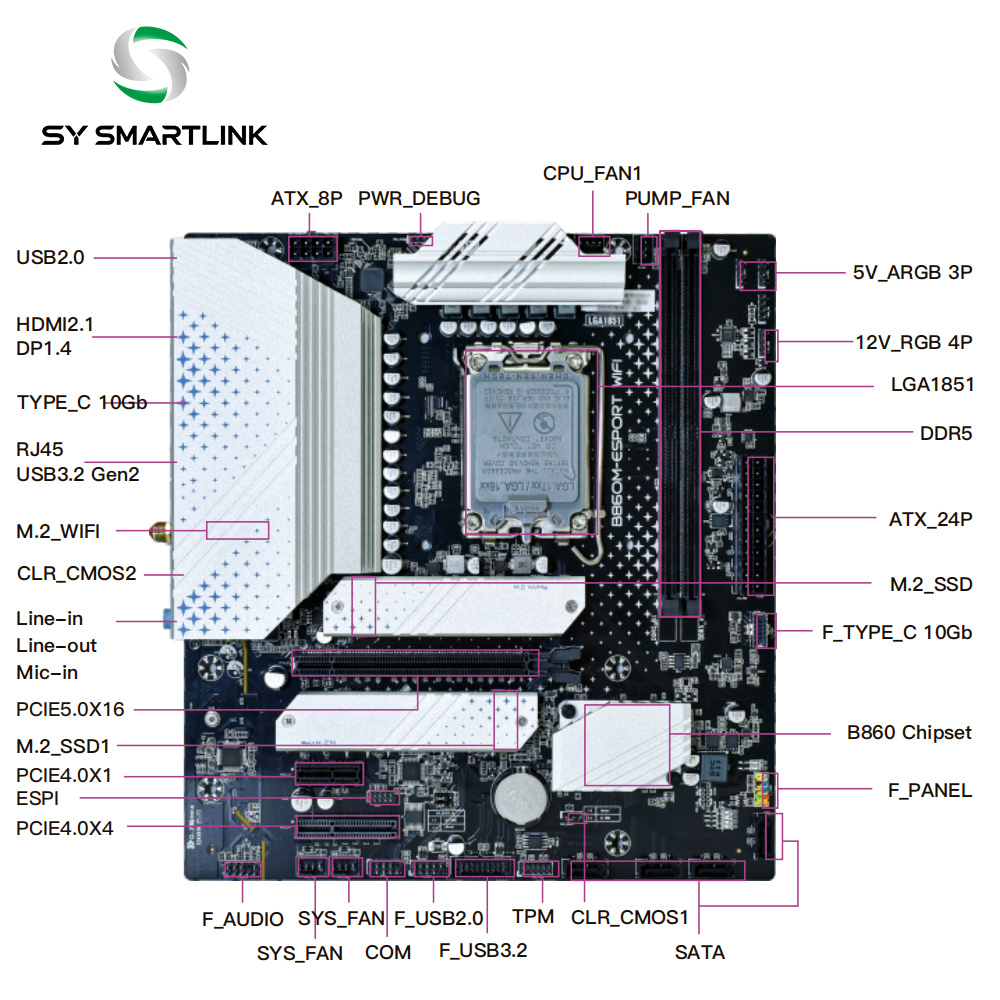

Back Panel I/O
1*F_AUDIO connector	1*12V_RGB 4P connector
1*COM connector	2*5V_ARGB 3P connector
1*F_USB2.0 connector	L_support 2*USB2.0 ports
1*F_USB3.2 connector	L_support 2*USB3.2 Gen1 ports
1*F_TYPE-C 10Gb port	1*ESPI connector
2*SYS_FAN connector	1*CPU_FAN connector
1*PUMP_FAN connector	1*F_PANEL connector
1*CLR_CMOS connector	1*TPM connector
1*ATX_24P power port	1*ATX_8P power port
Internal I/O
1*PCIe 5.0 X16 slot	1*M.2_WIFI slot E key
1*PCIe 4.0 X1 slot	support type 2230 support WIFI/BT/CNVi
1*PCIe 4.0 X4 slot
Form Factor
Micro-ATX(22.5cm x 24.5cm) 6 mounting holes

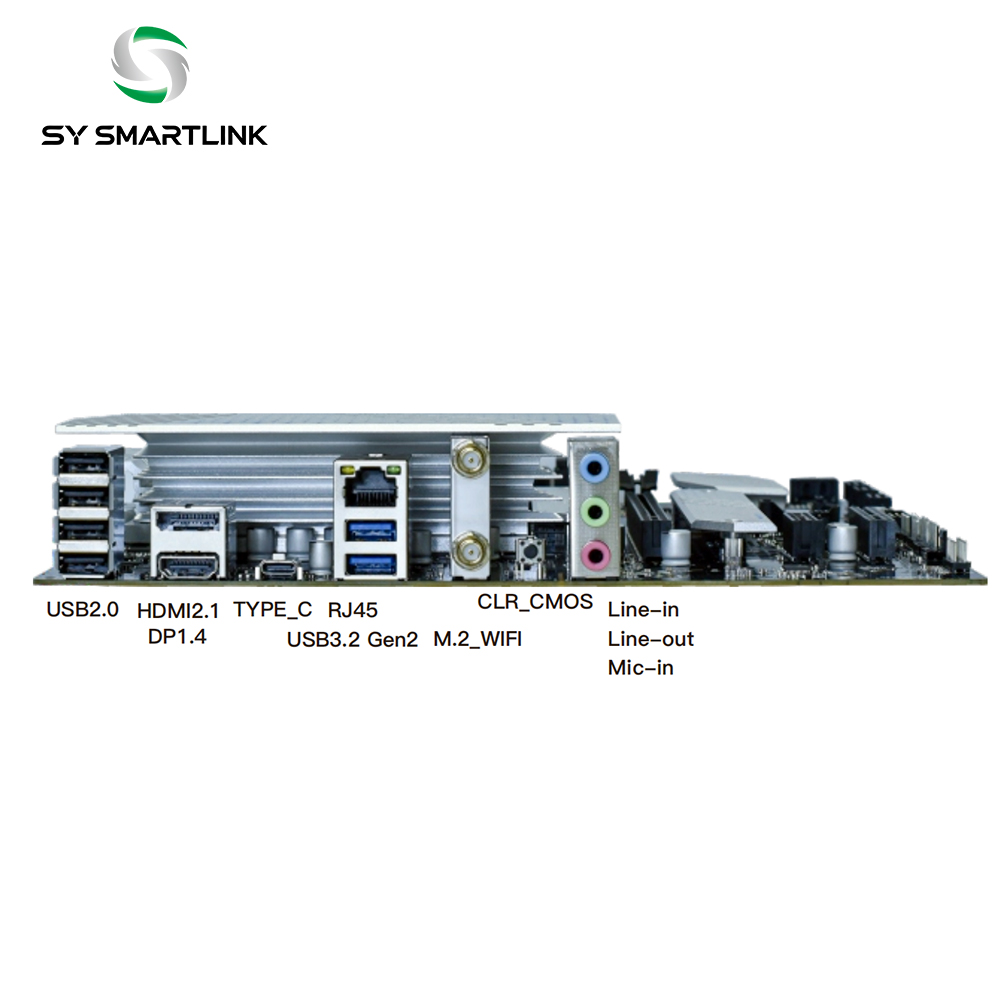

Rear Pane
The rear panel provides the following connectors

OEM/ODM Custom Service

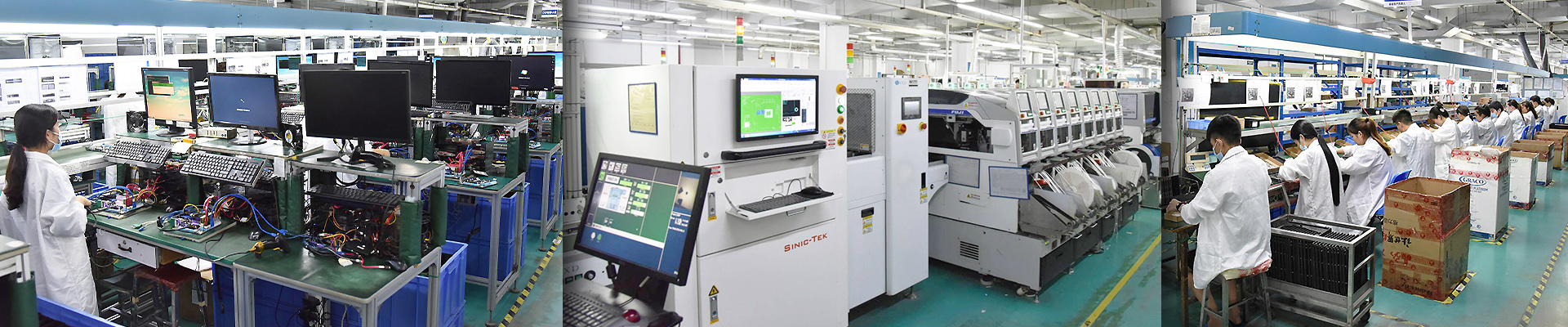

Shenzhen Sy Smartlink Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacturing, and sales of computer hardware products

One-stop full custom service from design to mass production, build your brand easily

Full Customization Solution For Your Brand

We provide OEM, ODM, CKD, SKD, and fully customized solutions across hardware functionality, motherboard structure, industrial design, software, packaging, and branding. No matter you are a start-up brand or a mature enterprise, we can meet your custom needs.

Hardware Customization
Motherboard circuit design, structure customization, interface customization.
Industrial Design
Shell appearance design, mold opening, material selection, color matching, logo customization.
Software Customization
System pre-installation, boot logo customization, software pre-installation, function customization.
Packaging & Branding

Custom packaging box, user manual, brand labeling, certification support, full brand service.

Our Custom Process

① ➟ ② ➟ ③ ➟ ④ ➟ ⑤ ➟ ⑥

Demand Communication

Scheme Design

Sample Making

Sample Testing

Mass Production

Delivery & Service

Understand your custom needs

and product requirements

Provide custom solution

and quotation for you

Produce prototype

sample for your confirmation

Test and adjust the

sample according to your feedback

Formal mass productionafter

sample confirmation

On-time delivery and after-sales

technical support

Click here to contact us.......
